Round Rest Pads
10148

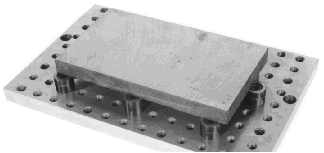

Used to establish height location where large contact surfaces are required
  • Various heights available, accurately sized for precise height location.
  • Flat head cap screws or socket head cap screws are used to secure Round Rest Pads.
  • Any desired height is possible when used with large diameter shims.(Part No.10150)
  • Material: Alloy steel, case hardened to 60Rc.

(10148-3 shown)


Part Number
Description
CAD
download
Cost
USD
10148-1
1.25in. Dia. Round Rest Pad .3125in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-1.zip
$27
10148-2
1.25in. Dia. Round Rest Pad .3750in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-2.zip
$28.75
10148-3
1.25in. Dia. Round Rest Pad .5000in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-3.zip
$30.25
10148-4
1.25in. Dia. Round Rest Pad .6250in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-4.zip
$34.5
10148-5
1.25in. Dia. Round Rest Pad .7500in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-5.zip
$40
10148-6
1.25in. Dia. Round Rest Pad 1.0000in. Head Height for 1/2in. Flat Head Screw
Parasolid
10148-6.zip
$36
HD10148-1
2in. Dia. Round Rest Pad .5000in. Head Height for 3/4in. Flat Head Screw
File Request
HD10148-1
$24.3
HD10148-2
2in. Dia. Round Rest Pad .5625in. Head Height for 3/4in. Flat Head Screw
File Request
HD10148-2
$25.2
HD10148-3
2in. Dia. Round Rest Pad .6875in. Head Height for 3/4in. Flat Head Screw
File Request
HD10148-3
$26.1
HD10148-4
2in. Dia. Round Rest Pad .8125in. Head Height for 3/4in. Flat Head Screw
File Request
HD10148-4
$27
