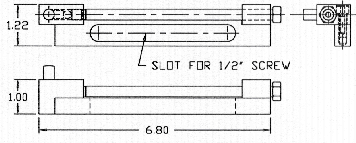

Locking Work Support
20104

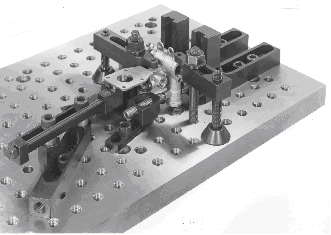

Used to support workpieces in places where cutting forces could cause deflection, vibration, and chatter
  • Will support up to 1,500 lbs; plunger stroke is .44".
  • The plunger is positioned directly under the point needing support. Light spring pressure brings the plunger in contact with the workpiece. The plunger is clamped using a wrench on the clamp rod.
  • Unique locking mechanism improves load-bearing capacity.
  • The work support may be elevated using other components. When elevated, the end containing the plunger should be fully supported.
  • Material: Hardened Alloy steel
Part Number
Description
CAD
download
Cost
USD
20104
LOCKING WORK SUPPORT
File Request
20104
$402
