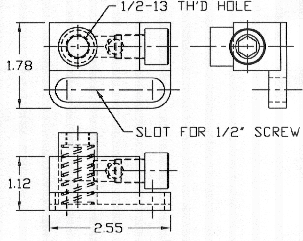

Locking Work Support
20161
(with threaded hole in plunger)

Used in combination with rest pads and other components to resist deflection of workpieces under cutting pressure
  • Will support up to 1,500 lbs; plunger stroke is .44".
  • The plunger is positioned directly under the point where the support is needed.
  • Spring pressure brings the plunger in contact with the workpiece. The plunger is locked by tightening the clamp screw. Unique locking mechanism improves load-bearing capacity.
  • Virtually any height or size of rest surface can be created by using the range of available accessories Rest Pad Bases, Toggle Rest Pads, Shims, or studs.
  • Material: Hardened Alloy steel
Part Number
Description
CAD
download
Cost
USD
20161
LOCKING WORK SUPPORT
File Request
20161
$543
