Standard Angle Plates

FEATURES

  • Base pattern of Stevens Angle Plates consists of bushed holes and clearance holes for pull dowels and cap screws.
  • Bushing locations are qualified relative to the vertical face and bottom face.
  • Material: Ductile iron or steel; Angle Plates smaller than 12" in height are hardened.
  • Perpendicularity .0005"/12"
  • Flatness .0003"/12"
  • Grid Accuracy, see System Accuracy.

Contact Us

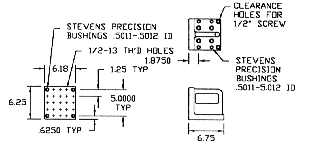

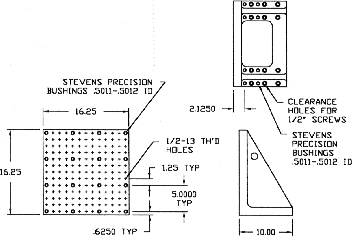

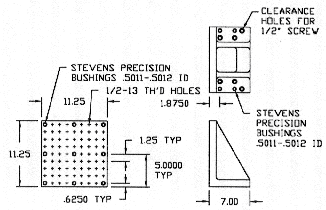

DRAWING DETAILS

PART NO.
20016

PART NO.
20017

PART NO.
20080

PART NO.
20053

PART NO.
20195
Part Number
Description
CAD
download
Cost
USD
20016
6in. Angle Plate
Parasolid
20016.zip
$950
20017
11in. Angle Plate
Parasolid
20017.zip
$2010
20080
Angle Plate 3.75 x 11.25 x 7.00
Parasolid
20080.zip
$1301
20053
Angle Plate
Parasolid
20053.zip
$3605
20195
ANGLE PLATE
Parasolid
20195.zip
$6065
