Vee Locators
20098

Used For Locating Smaller Diameter Workpieces.
  • Height is precisely qualified, vee surfaces are ground central with stem centerline.
  • Bushing type locators use an expanding collet feature to lock into Stevens bushings.
  • Threaded type have an independently rotating stem coupled to the Vee Locator to thread into a tapped hole.

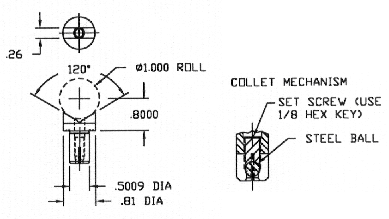

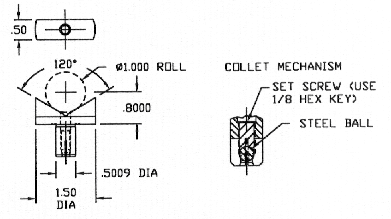

20098-1

20098-2


20098-3

20098-4
Part Number
Description
CAD
download
Cost
USD
20098-1
Vee Locator - Bushed Hole Style
File Request
20098-1
$153
20098-2
Vee Locator - Threaded Hole Style 1/2-13
File Request
20098-2
$149
20098-3
Vee Locator - Bushed Hole Style
File Request
20098-3
$166
20098-4
Vee Locator - Threaded Hole Style 1/2-13
File Request
20098-4
$162
