Adjustable Angle Plates


Features
  • Any angle from 0 to 90 can be set using Shims  and studs, both of which are furnished with each unit.Tabulation sheet shows shim stack required for setting any angle.
  • Stevens pattern in base and on face allows use with other Stevens accessories.
  • Compound angles may be achieved by stacking Adjustable Angle Plates.

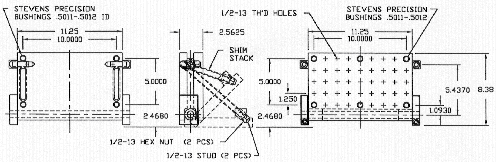

Drawing Details



PART NO.
20130







PART NO.
20168


Part Number
Description
CAD
download
Cost
USD
20130
ADJUSTABLE ANGLE PLATE
File Request
20130
$3020
20168
ADJUSTABLE ANGLE PLATE
Parasolid
20168.zip
$4828
