Chain Clamps

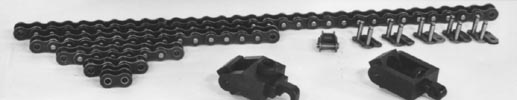

Stevens Engineering Chain Clamps are a unique way to hold any round work piece on a machining center. Use in combination with our Vee-Blocks to clamp a wide range of sizes. Shown below there are three styles of Chain Clamp : Standard Duty, Heavy Duty, and Heavy Duty - Long Stroke.
Standard Duty
kit P/N 20149 (clamping force up to 6,000 lbs)
Kit 20149 includes:
  1. (1) 20150 Cam-Locking Hook Assembly
  2. (1) 20151 Take-Up Unit
  3. (5) 10421 Chain Clamp Shoes
  4. (1) 20152 No.50 Chain Set
Heavy Duty
kit P/N HD20149 (clamping force up to 12,000 lbs)
Kit HD20149 includes:
  1. (1) HD20150 Cam-Locking Hook Assembly
  2. (1) HD20151 Take-Up Unit
  3. (5) HD10421 Chain Clamp Shoes
  4. (2) HD20152 No.80 Chain Set
Heavy Duty - Long Stroke
kit P/N HD20149L (for chain lengths over 60")
For large worpieces that require over 60" of chain, the amount of stretch starts to diminish the clamping force of the cam-lock due to the fixed amount of stroke. With the 'Heavy Duty Long Stroke Clamp' there is .750" of stroke to accomodate much longer chains and has the same clamping force as the HD20149. It is also useful for parts which are thin-walled or otherwise easily deflected.
Kit HD20149L includes:
  1. (1) HD20261 Long Stroke Hook Assembly
  2. (1) HD20151 Take-Up Unit
  3. (5) HD10421 Chain Clamp Shoes
  4. (2) HD20152 No.80 Chain Set with an additional 30" section of chain
Part Number
Description
CAD
download
Cost
USD
20149
Chain Clamp Kit
Parasolid
20149.zip
$445
20150
CAM LOCKING HOOK
Parasolid
20150.zip
$275
20151
TAKE-UP ASM
Parasolid
20151.zip
$155
10421
CHAIN CLAMP SHOE
File Request
10421
$1.2
20152
CHAIN SET
File Request
20152
$92
HD20149
HEAVY DUTY CHAIN CLAMP
File Request
HD20149
$804
HD20150
HD CAM LOCKING HOOK
Parasolid
HD20150.zip
$503
HD20151
HD TAKE-UP ASM
Parasolid
HD20151.zip
$188
HD10421
CHAIN CLAMP SHOE
File Request
HD10421
$1.6
HD20152
HD CHAIN SET
File Request
HD20152
$240
HD20149L
Heavy Duty (Long Stroke) Chain Clamp Kit
File Request
HD20149L
$979
HD20261
Long Stroke Hook Assembly
Parasolid
HD20261.zip
$735
