Steel Tooling Plates


FEATURES

  • Designed for use in making permanent or temporary holding fixtures which can quickly and repeatedly be mounted on Stevens Primary Tooling.
  • Available from stock for quick fixture turnaround.
  • Made from stress relieved free-machining steel.
  • Precision ground:
    1. parallelism .0005"
    2. thickness .920+/- .001
  • Jig-bored and bushed locating holes to mount on any Stevens Primary Fixturing.

Contact Us

DRAWING DETAILS

PART NO.
10070-1

PART NO.
10070-2

PART NO.
10070-3

PART NO.
10070-4



PART NO.
10070-5



PART NO.
10070-6

PART NO.
10070-7
Part Number
Description
CAD
download
Cost
USD
10070-1

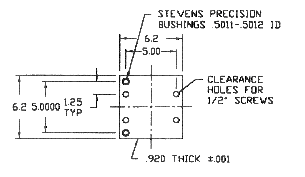

6.2 x 6.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-1
$271
10070-2

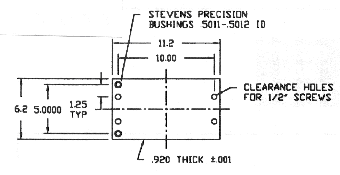

11.2 x 6.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-2
$318
10070-3
11.2 x 6.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-3
$376
10070-4

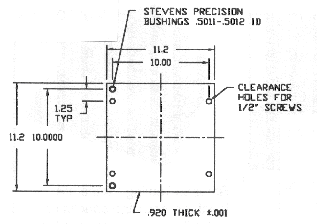

11.2 x 11.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-4
$433
10070-5
16.2 x 11.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-5
$580
10070-6

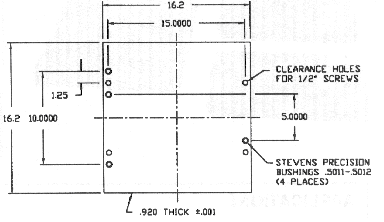

16.2 x 16.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-6
$936
10070-7

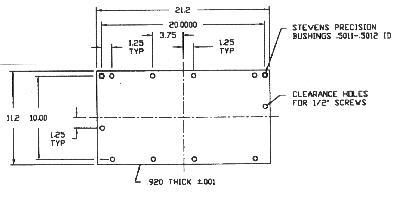

21.2 x 11.2 x .920 THICK STEEL TOOLING PLATE
File Request
10070-7
$881
