Trunnion Fixture

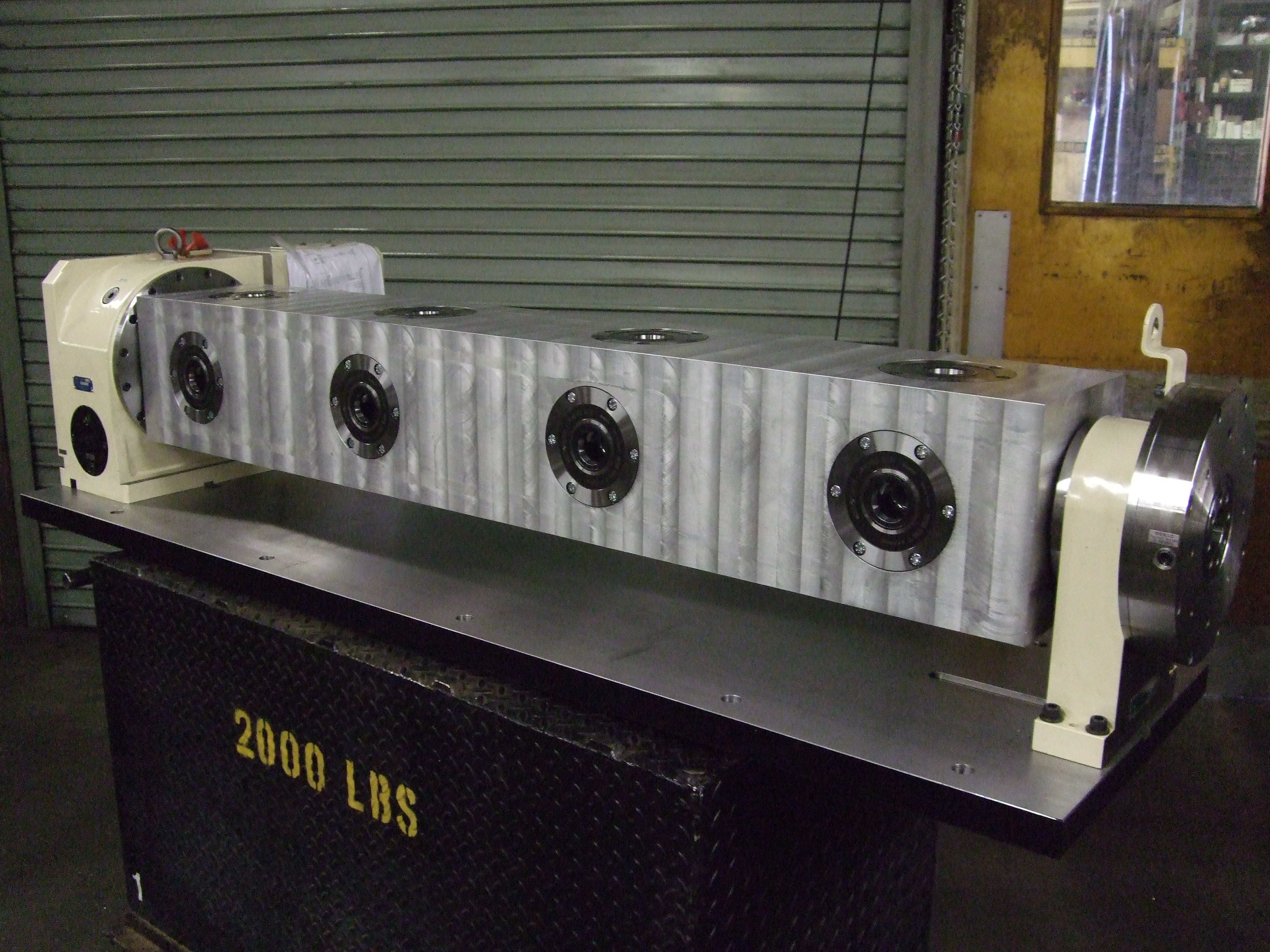

Four sided trunnion with removable tooling plates
Big Kaiser Unilock Chucks (4) per tooling plate utilize un-clamp and Turbo
Only two M-codes required for un-clamp and turbo
The specially designed rotary coupler only allows un-clamping to the tooling plate rotated to the top position
